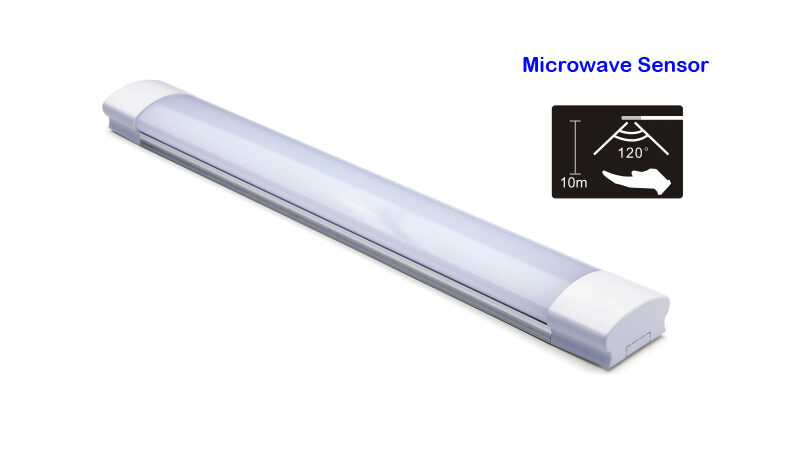

1. Microwave Sensor function: When people comes it to automatically light up 100% brightness. After people leave, it 10-15% brightness.
2. Detection angle: 120°
3. Detection distance: 0-10m
4. Installation: Single installation or Linkable installation
5. LED type: 2835SMD
6. Beam angle: 120°
7. CRI: >Ra80
8. PF: >0.9
9. Long life, 3 Years Warranty
| Model | Power | Dimension | Color | Luminous Efficiency | Luminous Flux | Voltage |
|---|---|---|---|---|---|---|
| SNS-BTL600-20WS | 20W | 600*72*38mm | 2700-6500K | 120lm/W | 2300-2500lm | AC100-265V |
| SNS-BTL1200-40WS | 40W | 1200*72*38mm | 2700-6500K | 120lm/W | 4600-4900lm | AC100-265V |
| SNS-BTL1500-60WS | 60W | 1500*72*38mm | 2700-6500K | 120lm/W | 7000-7300lm | AC180-265V |
| SNS-BTL1800-70WS | 70W | 1800*72*38mm | 2700-6500K | 120lm/W | 8200-8500lm | AC180-265V |

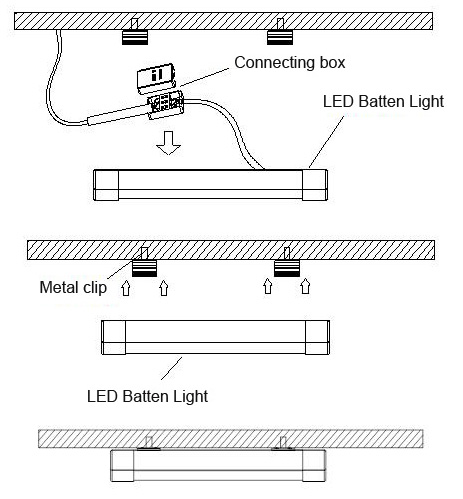

A. Single installation

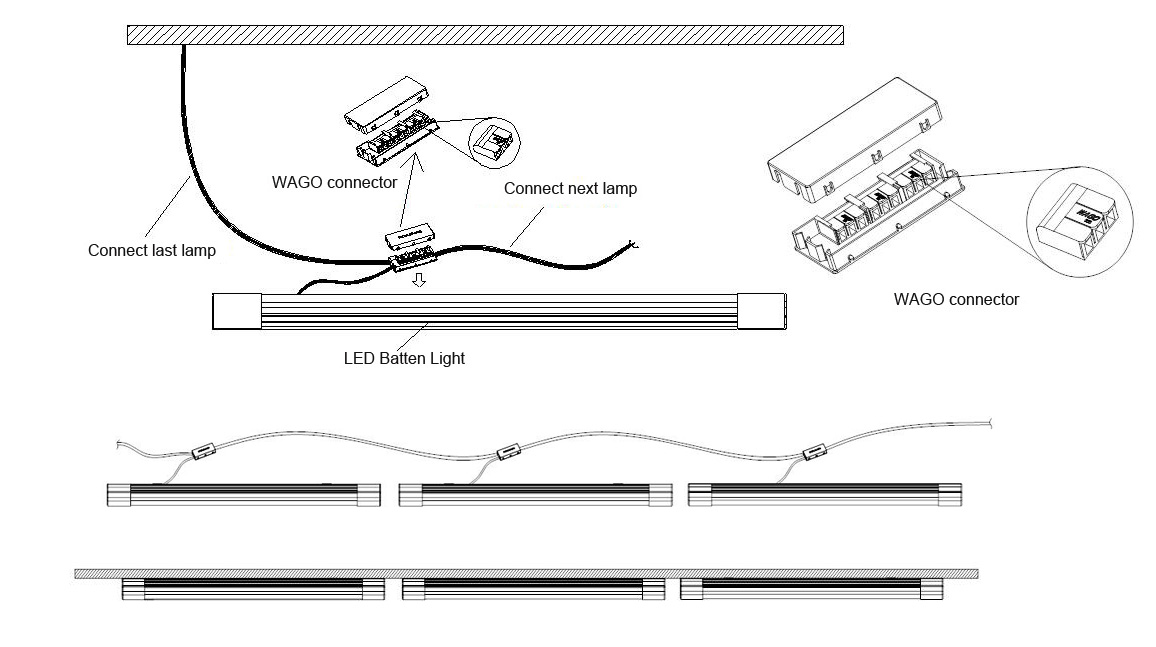

B. Linkable installation
Supermarket, factory assembly line, garage, subway station, office, and so on.
