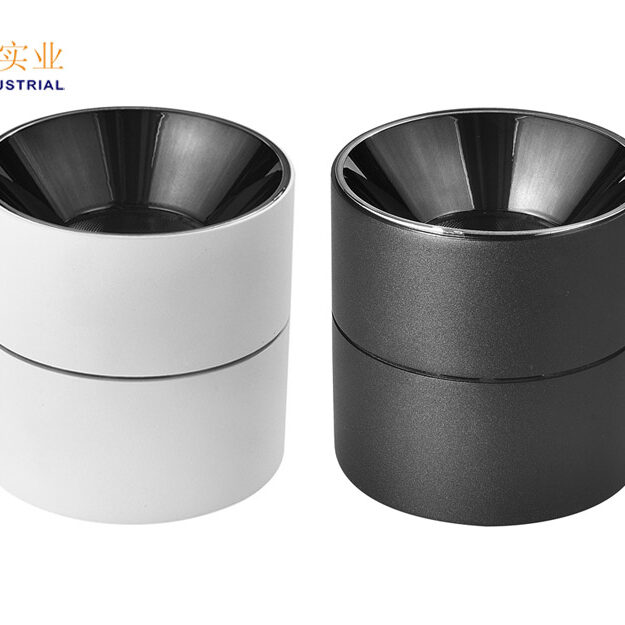

DL16F Series IP65 waterproof surface mounting LED downlight, use high quality COB LED, can make 7W, 12W and 15W, Input voltage AC110-130V or AC220-240V.
Features
● Use high quality COB LED
● Driver: Built-in constant current driver
● Function: ON/OFF, Triac dimming, 0/1-10V Dimming, DALI
● Housing material: Aluminum
● Optical System : Reflector + Lens
● Housing color: White/Black
● CRI: Ra>80
● Input voltage: AC110-130V/AC220-240V
● IP Rating: IP65
● Installation: Surface Mounted
Specification
| Model | Power | Lumen | Beam | Dimension | Color | Voltage |
|---|---|---|---|---|---|---|
| SNS-DL16F-7W | 7W | 85Lm/W | 38° | Ø70*H100mm | WW/NW/CW | 110-130V/220-240VAC |
| SNS-DL16F-12W | 12W | 85Lm/W | 38° | Ø90*H120mm | WW/NW/CW | 110-130V/220-240VAC |
| SNS-DL16F-15W | 15W | 85Lm/W | 38° | Ø105*H135mm | WW/NW/CW | 110-130V/220-240VAC |
Application

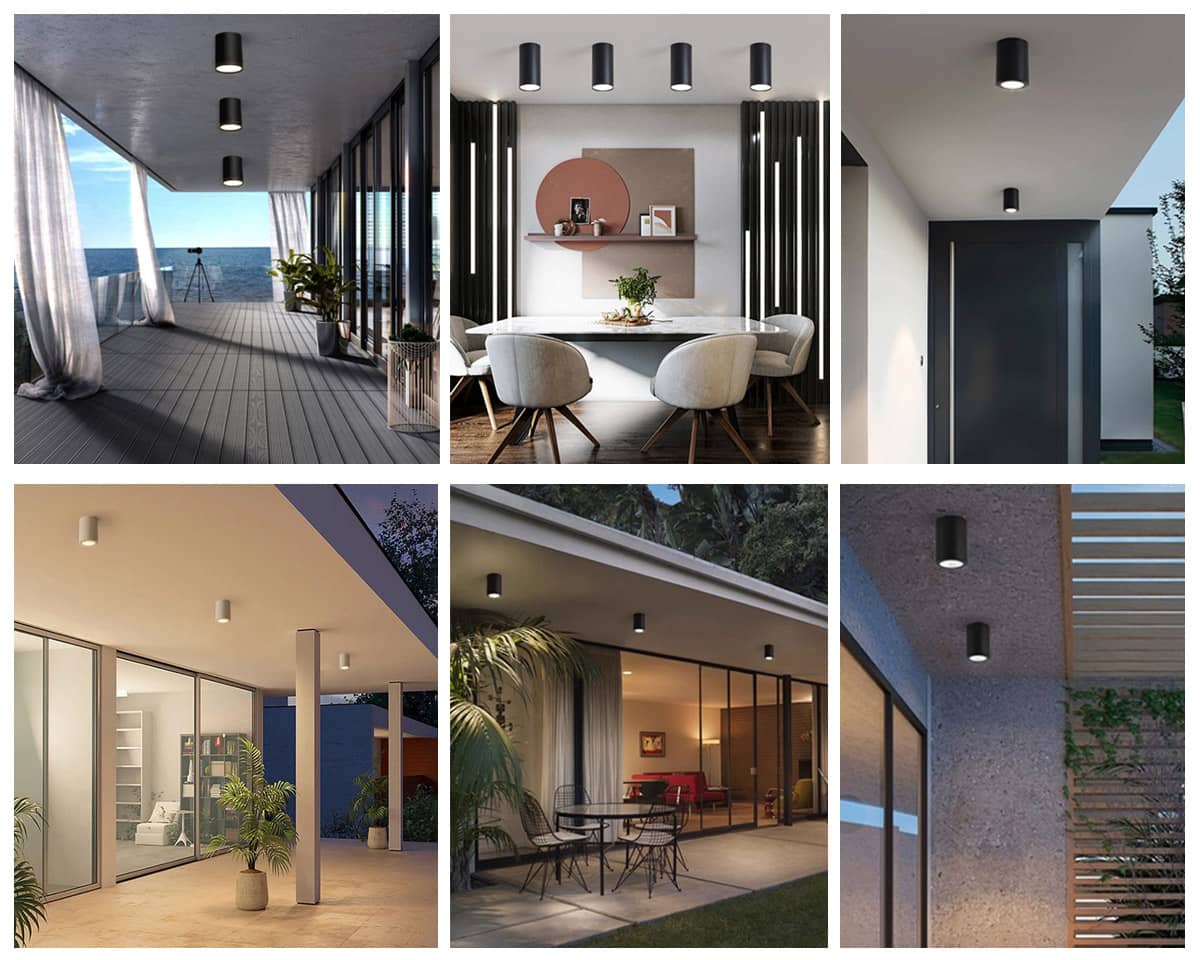

Bathrooms, Kitchens, Balconies, Outdoor corridors, Schools, Hospital, Conference Rooms, Show Rooms, Supermarkets, Metro Station, Underground Parking, etc.
